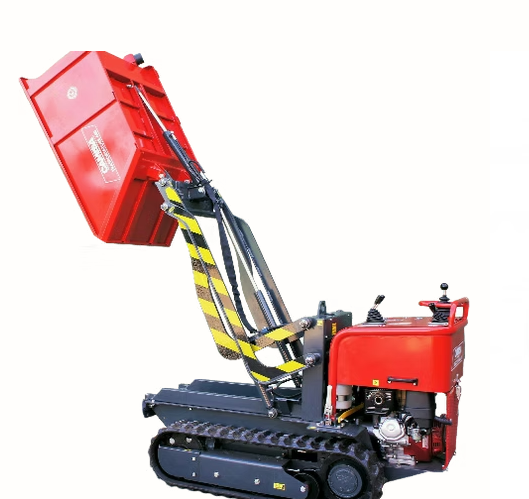

Camisa TP580 Elevated Tool Rentals

Specifications

Engine Honda GX 390 (Hp 11,7 / Kw 8,7) gasoline

Pull start recoil

Transmission hydrostatic with piston pump

Hydraulic motors with epycicloidal reducers

Controls joystick for control direction and speed

Brakes negative

Guide roller with unthreading pins assembled on bearings

Tracks heavy duty rubber

Spring tensioner for the tracks

Loading platform dumper, m³ 0,30

Tipping hydraulic with double effect piston

Overall dimensions mm. 1750x740x1160

Weight Kg. 390

Capacity Kg. 800

Speed from 0 to 5 Km/h by gradual change

Treated on all metallic parts powder painting

Accessories

• Lifter bed, unloading height mm. 1200-1400, capacity Kg. 600

• Concrete mixer Lt. 250

• Hydraulically operated excavating.
